Product presentation
MWM2026Q is a broadband passive mixer operating across 80-2500MHz frequencies. With 17dBm LO drive power, it delivers 8dB conversion loss, 40dB LO/RF isolation, 18dBm input P-1 power, and 24dBm IIP3 performance. This product features exceptional three-terminal isolation, high linearity, and a high input 1dB compression point.
Product features
· Low frequency broadband: 80-2500MHz;
· High input P1dB: 18dBm;
· High-end isolation: 40dB @LO/RF, 32dB @LO/IF, 30dB @RF/IF;
· High linearity: 24dBm @IIP3;
· It is domestically produced and can replace the foreign competitor SYM-25DHW+ in situ.
Functional block diagram
product property
|
parameter |
least value |
representative value |
crest value |
unit |
|
Radio frequency |
80 |
|
2500 |
MHz |
|
local frequency |
80 |
|
2500 |
MHz |
|
IF-FRE |
DC |
|
1000 |
MHz |
|
conversion loss |
|
8 |
|
dB |
|
Nominal power |
|
17 |
|
dBm |
|
LO-RF insulation |
|
40 |
|
dB |
|
LO-IF insulation |
|
32 |
|
dB |
|
RF-IF insulation |
|
30 |
|
dB |
|
Enter 1dB compression point |
|
18 |
|
dBm |
|
IP3 |
|
24 |
|
dBm |
|
RF return loss |
|
10 |
|
dB |
|
IF return loss |
|
10 |
|
dB |
Typical product test data
|

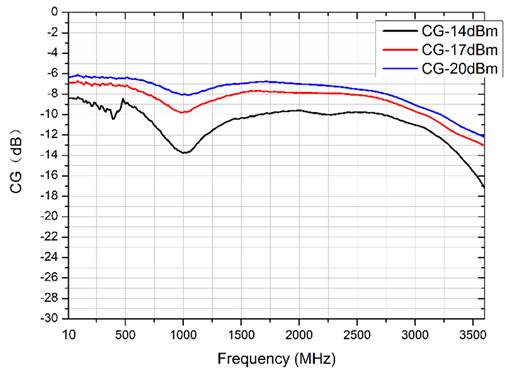

Variable frequency loss vs. RF frequency
|

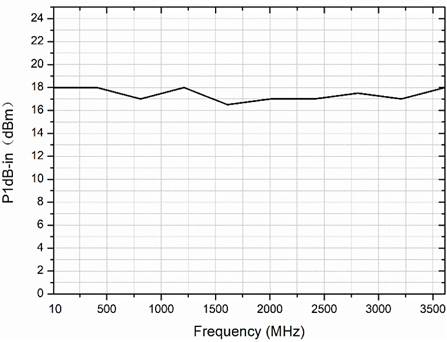

Input 1dB compression point vs. RF frequency
|
|

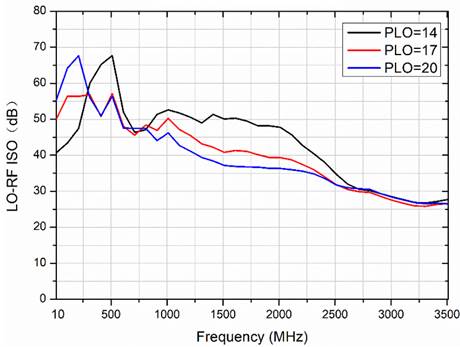

LO-RF isolation vs. LO frequency
|

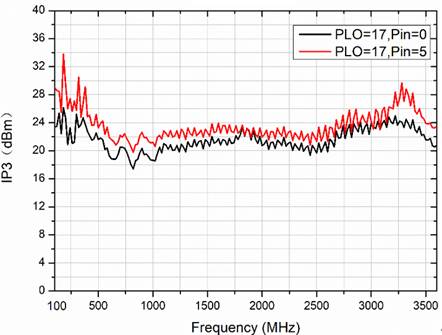

IIP3 vs. RF frequency
|
|
|
|

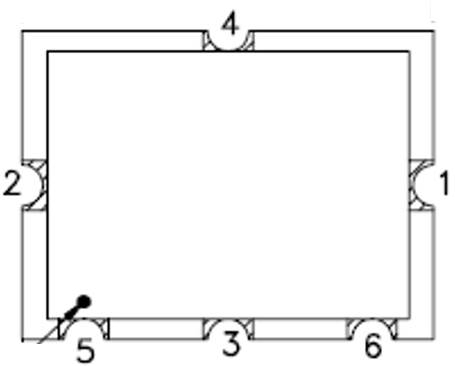

Definition of pin
|
Pin number |
Function |
Pin description |
Equivalent circuit |
|
1 |
RF |
RF port,has no internal isolation,and matches to 50ohm |
|
|
2 |
LO |
LO port,has no internal gap,and is matched to 50ohm |
|
|
3 |
IF |
IF port, no internal gap, matched to 50ohm |
|
|
4、5、6 |
GND |
Ground |
|
